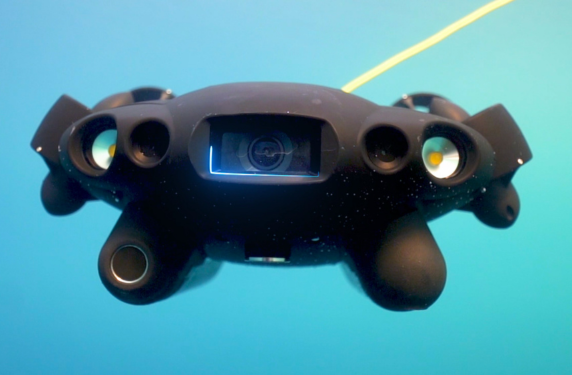

FIFISH pro V6 plus Accessories

The Q-IF (QYSEA Interface) enables FIFISH PRO V6 PLUS to attach a variety of optional accessories for various applications and multiple tasks.

You will also find PRO V6 PLUS spare accessories on this page.

carry cases

waterproof backpack bag

Specially designed, lightweight, and portable. QYSEA’s underwater drone backpack is uniquely customised for the FIFISH ROV. The outer layer of the backpack is made out of a TPU double-sided waterproof material that effectively protects the tether spool and remote controller from rainfall and storms. In addition to its 35L storage capacity, the backpack’s comfortable decompression-carrying system delivers a high load-bearing and lightweight carrying experience.

For use with FIFISH PRO V6 PLUS

inspection tools

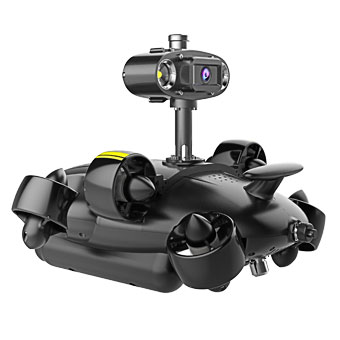

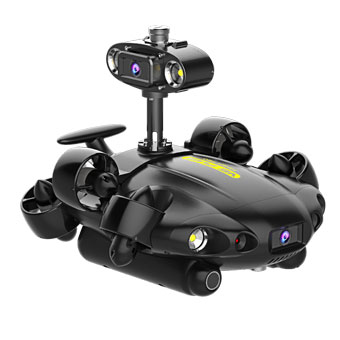

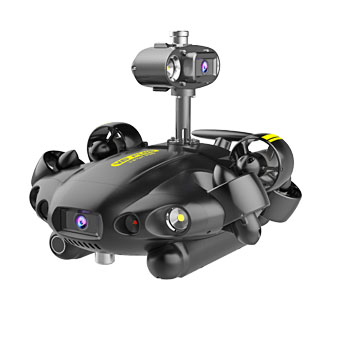

Q- Camera

The optional Q-Camera can be controlled in real time, and have real-time video transmission function.  Multi-angle installation, more flexible underwater view angles. Freely switch between the main camera and the Q-Camera split screen display.

Q-Camera specifications

Camera
Sensor: 1/2.3″ SONY CMOS
Apture: f/2.5
Max video res: 4k UHD: 25/30 fps
Video format: MPEG4-AVC/H.264, HEVC/H.265
Effective pixels; 12MP
Stabilisation: EIS (Electrical Image Stabilisation)
ISO Range: 100 – 6400 in auto/manual
Photo format: JPEG, DNG
White balance: 2500-8000k, auto/manual
Storage: External pluggable micro SD, 64 – 512GB
Field of view: 166º

General
Depth rating: 150m
Operating temp: -10 to 60º

Installation Angle
0º; Front vision,   90º; Right side vision
180º; Back vision,    270º; Left side vision

LEDs
Brightness: 500 x 2 Lumens
Control APP: Be controlled by FIFISH APP

For use with FIFISH PRO V6 PLUS

HDMI BOX 2.0

Optional HDMI Real-time projection screen display.

For use with FIFISH PRO V6 PLUS

vr headset

Optional VR headset to be used with a compatible smartphone/tablet. Control your underwater drone’s direction and movements simply by turning your head.

For use with FIFISH PRO V6 PLUS

SPORTS CAMERA MOunt

Optional rugged universal sports camera mounting bracket. Can be installed at the top of the unit to deliver simple and convenient method to shoot various angles.

For use with FIFISH PRO V6 PLUS

external lighting mount

Optional mounting bracket for additional external light.

For use with FIFISH PRO V6 PLUS

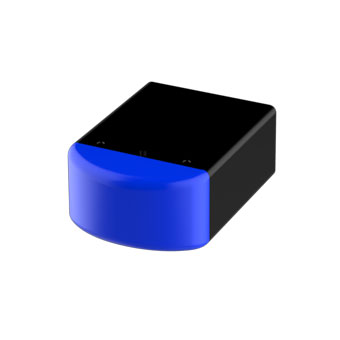

2D Image sonar

Optional 2D Image Sonar modular for inspection under dark and turbid water environment.

For use with FIFISH PRO V6 PLUS

WIFI remote control kit

Optional the FIFISH WiFi control kit provides real-time wireless control on shore to FIFISH underwater robot and real-time video transmitting to the server side onshore via QYSEA’s innovative patented AI edge box.

For use with FIFISH PRO V6 PLUS

Navigation tools

U-QPS (underwater quick positioning system)

U-QPS underwater quick positioning system provides the real-time FIFISH ROV location, POI recording, 3-dimensional diving path recording and one-kick to return POI.

For use with FIFISH PRO V6 PLUS

manipulator tools

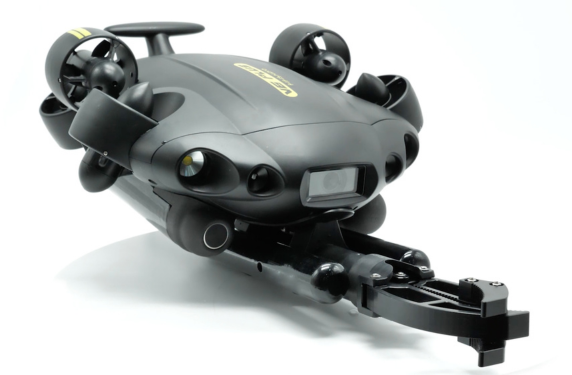

retrieval hook

Optional rugged hook with powerful clamp and lock function that withstands the weight and pulls underwater objects up to 200kg. Designed for use with 2-finger robotic arm.

For use with FIFISH PRO V6 PLUS

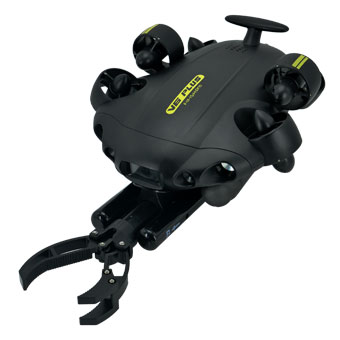

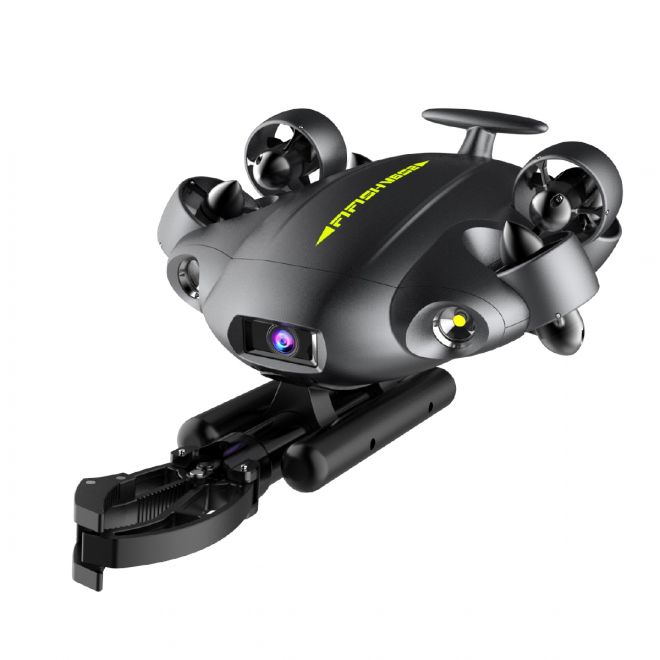

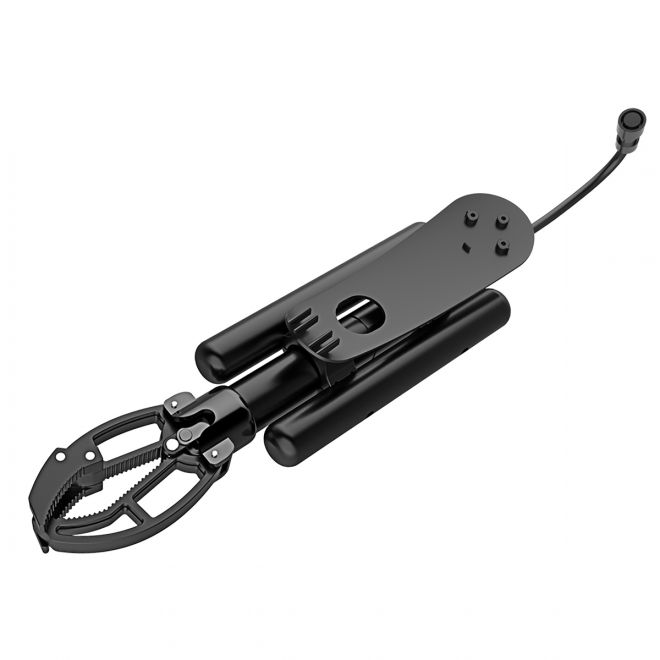

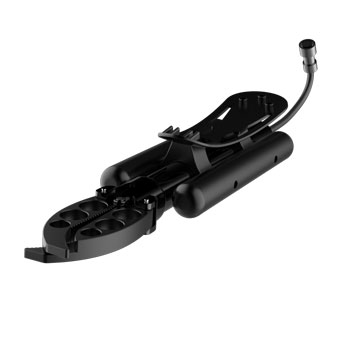

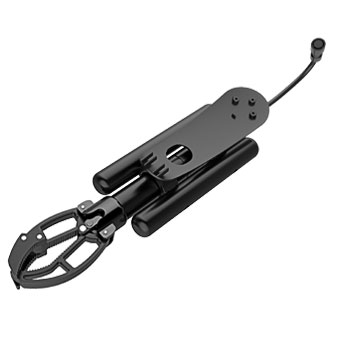

3 finger Robotic arm module

Optional compact 3 finger robotic arm design for stable operation and precise grasp with clamp lock function.  With a clamping and towing force of 100N (around 10kg) the full functioning robotic arm can  easily drag, drop, tow and salvage underwater objects.

Aluminium alloy arm body, 316 stainless teel, high reliable sealing connector.

For use with FIFISH PRO V6 PLUS

underwater dozer

Optional Underwater Dozer specially designed for aquaculture operations to push and move deceased/sick fish and other elements out of the fish farming spaces.

For use with FIFISH PRO V6 PLUS

mort remover

Optional mort remover specially designed for aquaculture operations for removing and transporting deceased/sick fish and other elements away from fish farms or to onshore for further analysis.

For use with FIFISH PRO V6 PLUS

fishing net

Optional Fishing Net designed for environmental fishing and marine education in mind.  Provides the ability to catch and hold onto fish across different types of waters without threat or damage.

For use with FIFISH PRO V6 PLUS

Sampling tools

water sampler

Optional Water Sampler to collect various types of water in different underwater environments for your specific needs. 100ml & 500ml available.

For use with FIFISH PRO V6 PLUS

mud sampler

Optional Mud Sampler to retrieve and sample a wide range of underwater sediments on the seabed.

For use with FIFISH PRO V6 PLUS

dissolved oxygen sensor

Optional Oxygen Sampler to monitor and record the level of dissolved oxygen in water contents.

For use with FIFISH PRO V6 PLUS

salinity sensor

Optional Salinity Sensor to measure the value of dissolved salt in the water.

For use with FIFISH PRO V6 PLUS

turbidity sensor

Optional Turbidity Sensor to measure the amount of light that is scattered by the suspended solids in the water.

For use with FIFISH PRO V6 PLUS

ph sensor

Optional pH Sensor to measure alkalinity and acidity levels in the water.

For use with FIFISH PRO V6 PLUS

power systems

onshore power supply system

The Optional OPSS fast charges your ROV without needing to return onshore. Built with 130 Watts of output power, the Onshore Power Supply System provides fast charging to 70% capacity within 1 hour and is capable of operating at depths of up to 160 meters.

For use with FIFISH PRO V6 PLUS

additional tools

Sunhood for controller

Optional Sunhood to hold iPads and tablets. It features an adjustable clamp to achieve a range of viewing angles for an unobstructed operating experience.



For use with FIFISH PRO V6 PLUS

spare parts

thruster protector

Optional Thruster protector kit to shield your propellers from underwater debris.

For use with FIFISH PRO V6 PLUS

propellor kit

Kit of 6 additional Anodised aluminium propellers.

For use with FIFISH PRO V6 PLUS

Connector cable

IOS Lightning connector to mini USB

For use with FIFISH PRO V6 PLUS

Blanking caps

Additional spare blanking caps.

For use with FIFISH PRO V6 PLUS
