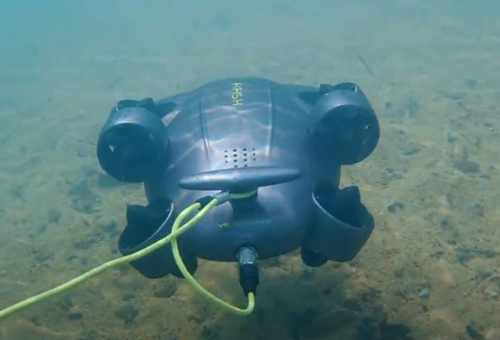

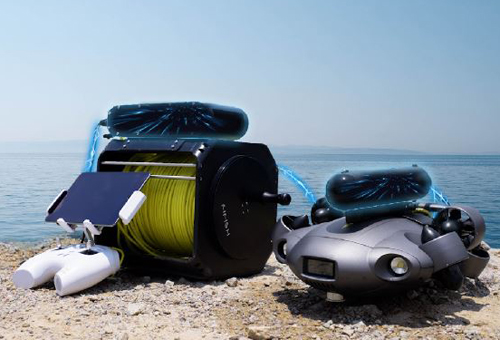

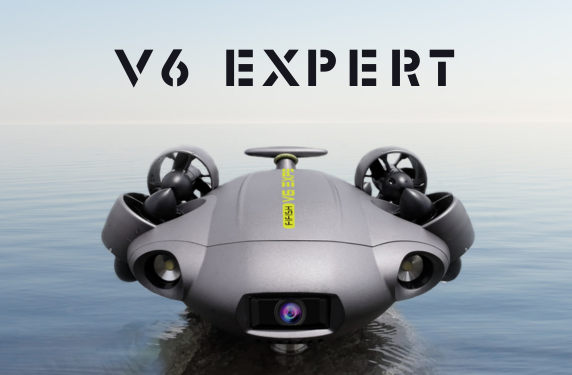

FIFISH V6 EXPERT Accessories
The Q-IF (QYSEA Interface) enables FIFISH V6 EXPERT to attach a variety of optional accessories for various applications and multiple tasks.
You will also find V6 EXPERT spare accessories on this page.
inspection tools
Industrial remote controller
No need to use your phone or tablet, simply connect your ROV to the Q-iRC industrial remote controller. With it’s 7″ 1080p HD screen, multi-window display, multiple expansion ports and up to 8hrs use this is a must for serious users.
For use with FIFISH V6 EXPERT

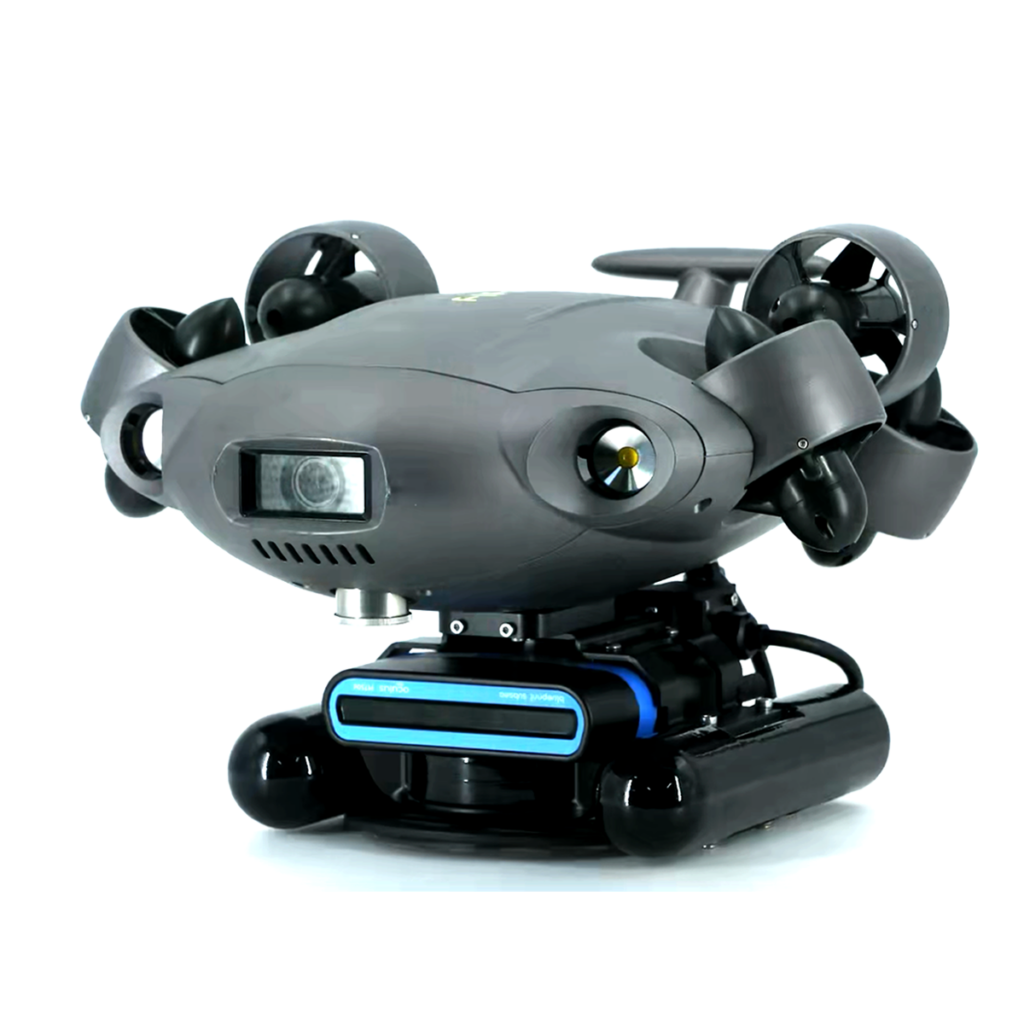

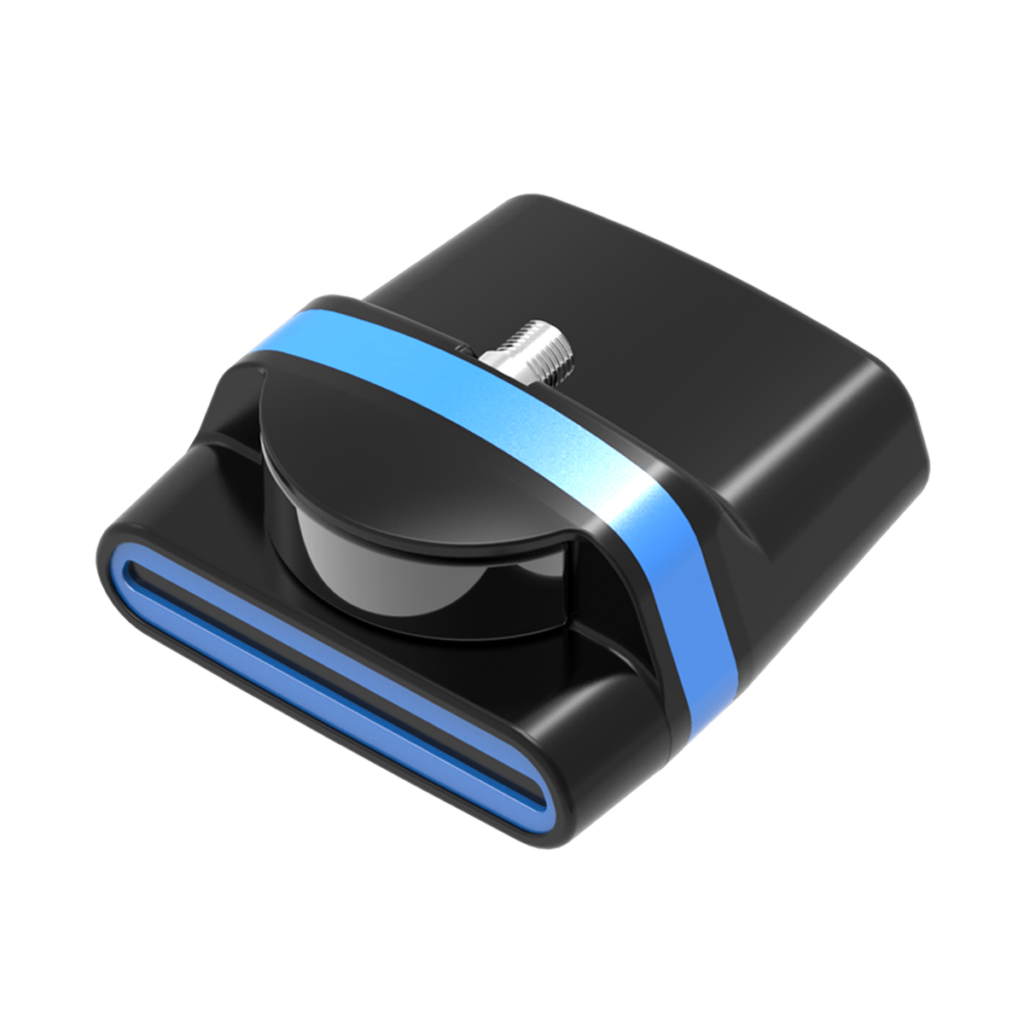

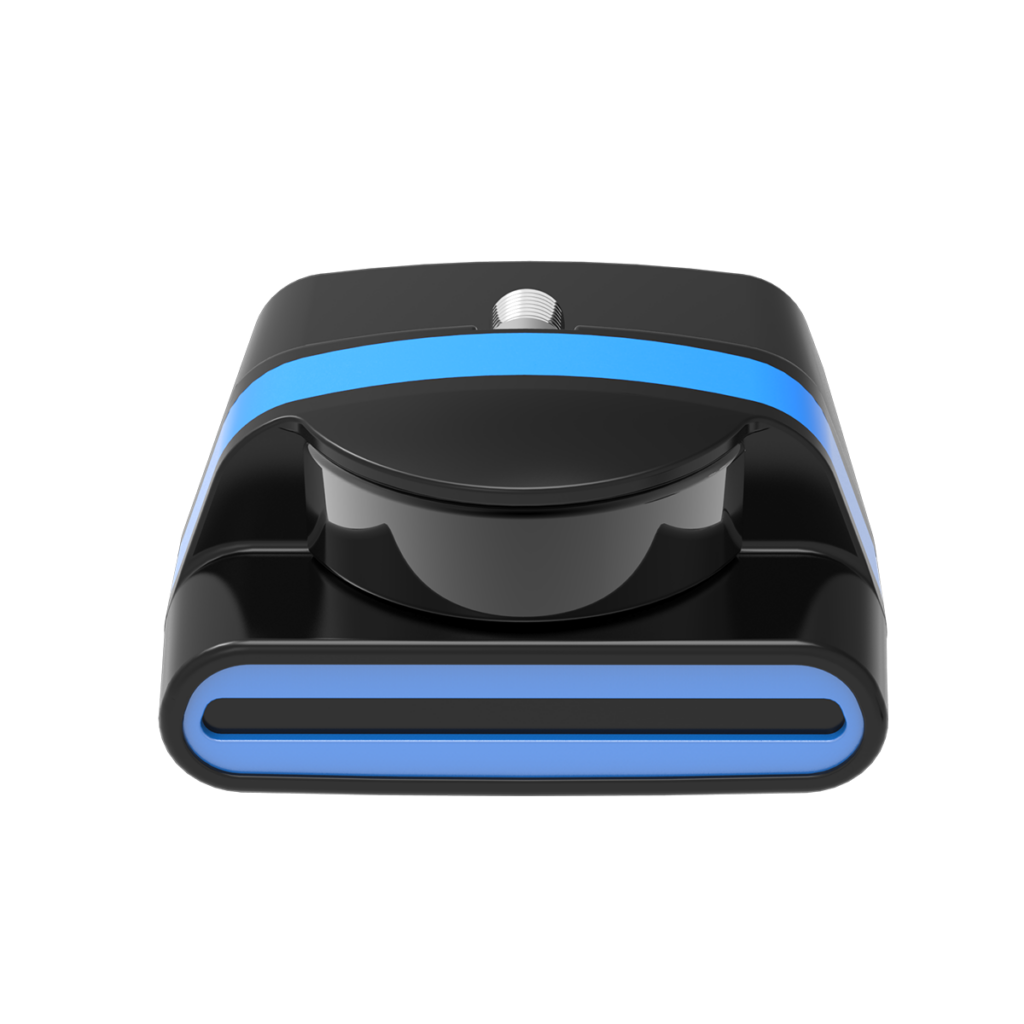

2D Image sonar
For use with FIFISH V6 EXPERT

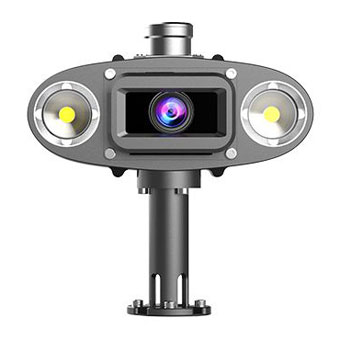

Q- Camera
The optional Q-Camera can be controlled in real time, and have real-time video transmission function. Multi-angle installation, more flexible underwater view angles. Freely switch between the main camera and the Q-Camera split screen display.
Q-Camera specifications
Camera
Sensor: 1/2.3″ SONY CMOS
Apture: f/2.5
Max video res: 4k UHD: 25/30 fps
Video format: MPEG4-AVC/H.264, HEVC/H.265
Effective pixels; 12MP
Stabilisation: EIS (Electrical Image Stabilisation)
ISO Range: 100 – 6400 in auto/manual
Photo format: JPEG, DNG
White balance: 2500-8000k, auto/manual
Storage: External pluggable micro SD, 64 – 512GB
Field of view: 166º
General
Depth rating: 150m
Operating temp: -10 to 60º
Installation Angle
0º; Front vision, 90º; Right side vision
180º; Back vision, 270º; Left side vision
LEDs
Brightness: 500 x 2 Lumens
Control APP: Be controlled by FIFISH APP
For use with FIFISH V6 EXPERT

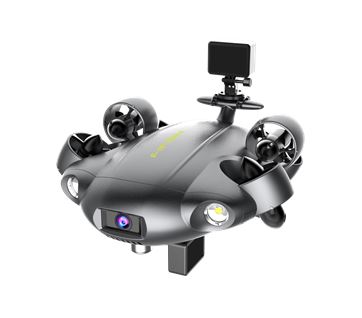

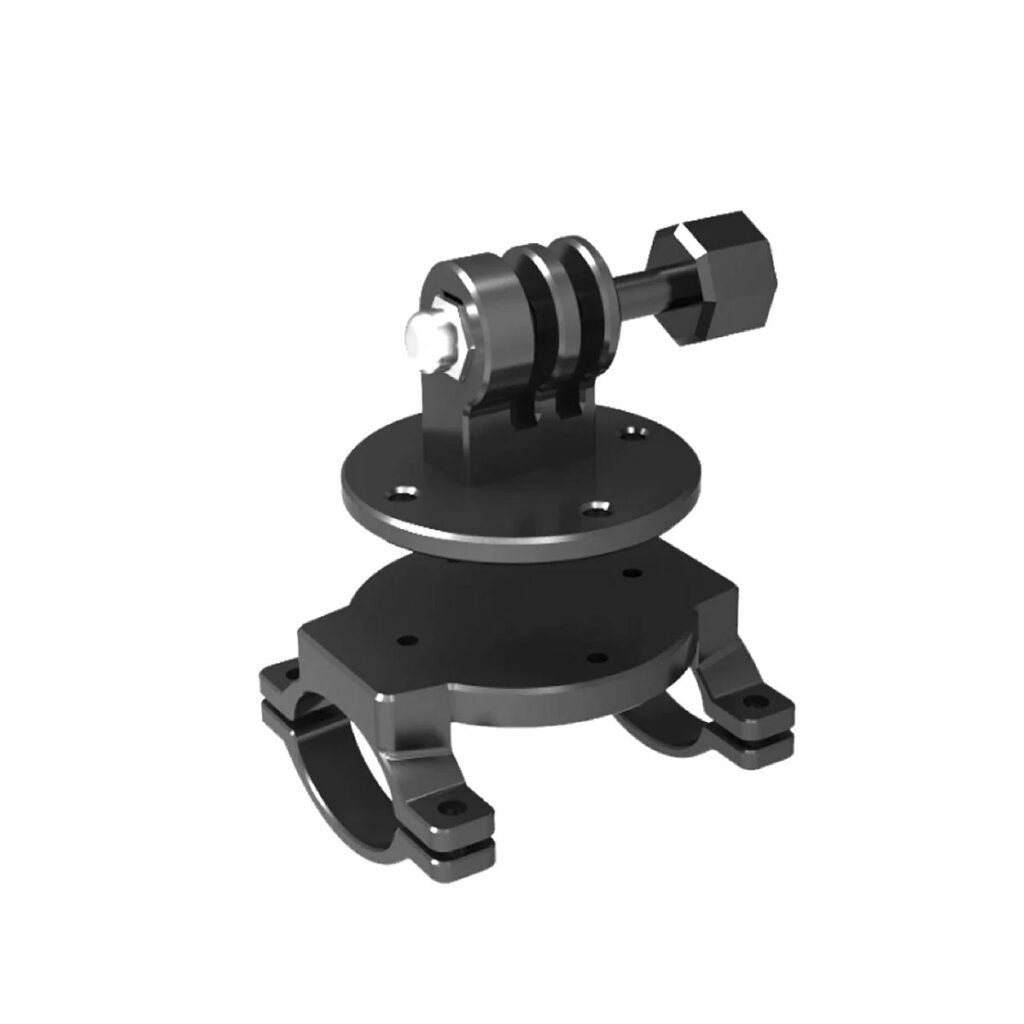

SPORTS CAMERA MOunt
Optional rugged universal sports camera mounting bracket. Can be installed at the top of the unit to deliver simple and convenient method to shoot various angles.
For use with FIFISH V6 EXPERT
Metal detector
The Qysea underwater metal detector is an instrument that detects the presence of metal nearby. Metal detectors are useful for finding metal inclusions hidden within objects, or metal objects buried underground.
For use with FIFISH V6 EXPERT

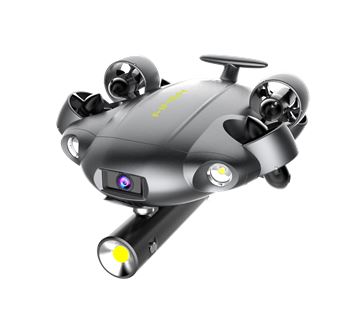

external lighting mount
Optional mounting bracket for additional external light.
For use with FIFISH V6 EXPERT
Measurement
Laser scaler
Accurately measure the sizes of underwater objects, pits, cracks, fish, and more with QYSEA’s high-precision laser.
For use with FIFISH V6 EXPERT
AR RULER
Utilise augmented reality technology (AR) with laser scaling technology to accurately measure the sizes of underwater objects with high precision and ease.
For use with FIFISH V6 EXPERT
distance meter
Measure and identify the distance between the ROV and target object underwater.
For use with FIFISH V6 EXPERT
Altimeter
Effectively determine, measure, and fix the height between the FIFISH ROV and seafloor, with real-time automatic adjustments.
For use with FIFISH V6 EXPERT
compass ruler
With the compass ruler you can physically measure the size of different underwater objects as you explore the oceans.
For use with FIFISH V6 EXPERT
Navigation tools

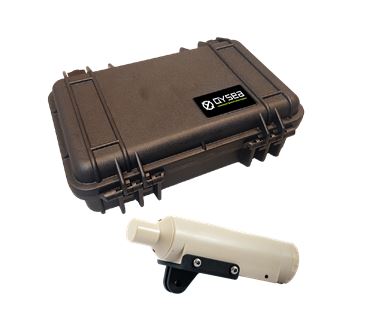

U-QPS (underwater quick positioning system)
U-QPS underwater quick positioning system is a Software and Hardware eco-system which can provide the real-time FIFISH ROV location, POI recording, 3 dimensional diving path recording and one-kick to return POI. Regardless of the interference of deep sea undercurrents, the path of the machine, the underwater 3D map will be displayed in real time, which is suitable for various long-term underwater detection and observation tasks.
For use with FIFISH V6 EXPERT
Station Lock Module (Mini DVL)
Achieve advanced ROV station lock and control capabilities, and experience a whole new level of stability and control when operating the FIFISH ROV.
Integrated with the FIFISH APP, the station lock system is an optimal solution to maintain stability while operating ROV tools or performing detail inspections. Highly suitable for offshore operations, structural inspections, and various comprehensive marine industrial applications.
For use with FIFISH V6 EXPERT
manipulator tools

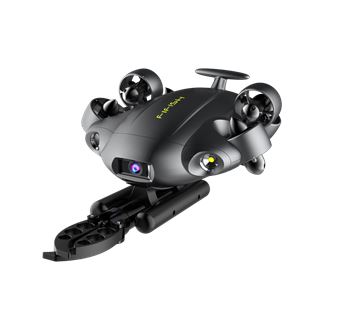

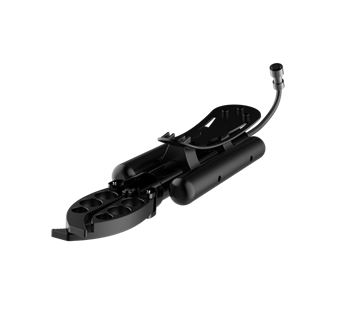

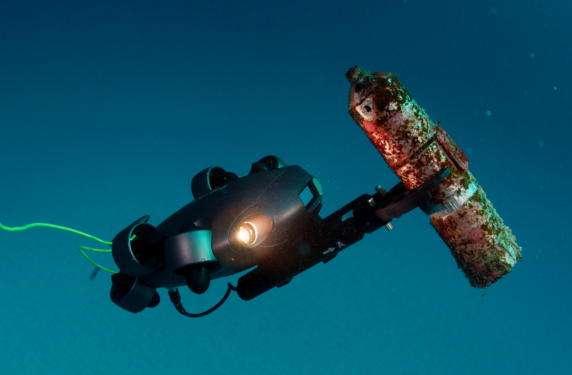

2 finger Robotic arm module
Optional compact 156mm short arm design for stable operation and precise grasp with clamp lock function. With a clamping and towing force of 100N (around 10kg) the full functioning robotic arm can easily drag, drop, tow and salvage underwater objects.
Aluminium alloy arm body, 316 stainless teel, high reliable sealing connector.
For use with FIFISH V6 EXPERT
3 finger robotic arm
The small but powerful robotic arm delivers a clamping and towing force of 100N (around 10kg) Drag, drop, tow, and salvage objects with the neutrally buoyant robotic arm and rugged tether cable.
For use with FIFISH V6 EXPERT

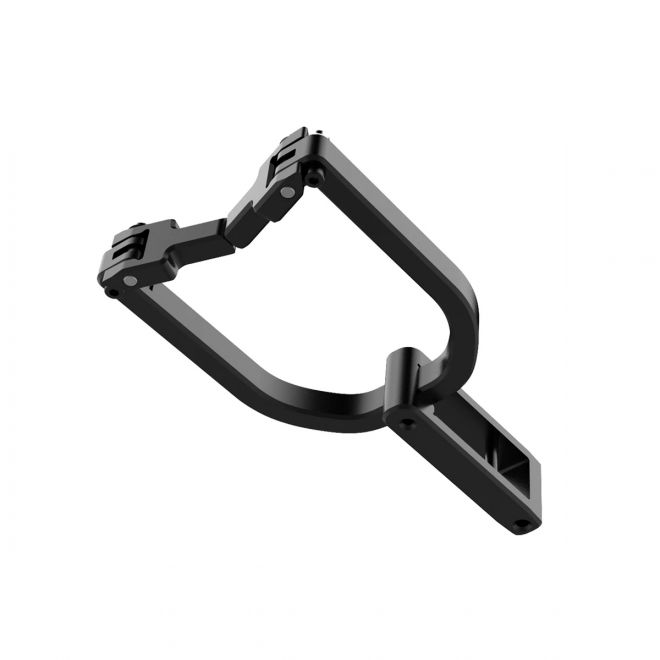

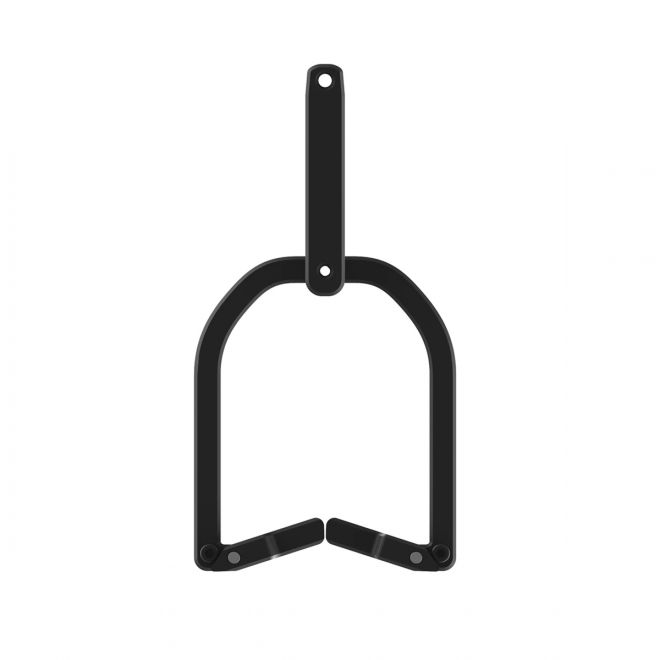

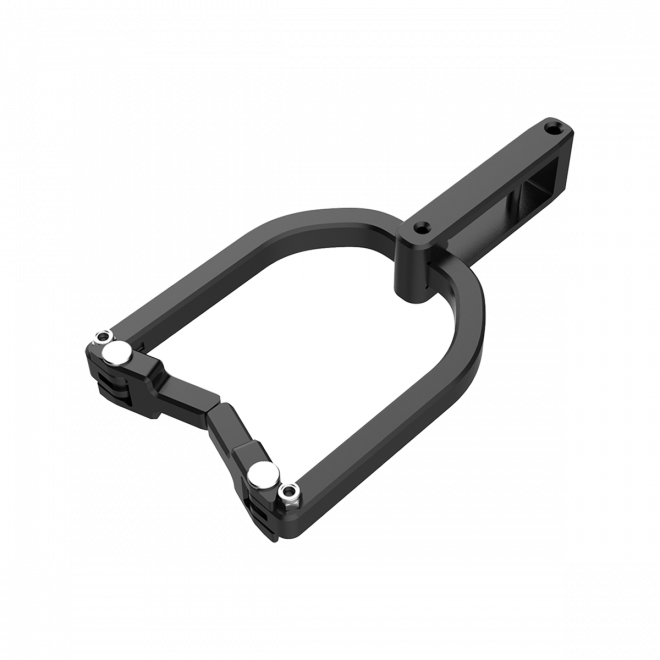

retrieval hook
Optional rugged hook with powerful clamp and lock function that withstands the weight and pulls underwater objects up to 200kg. Designed for use with 2-finger robotic arm.
For use with FIFISH V6 EXPERT

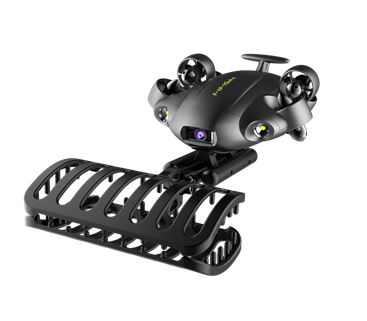

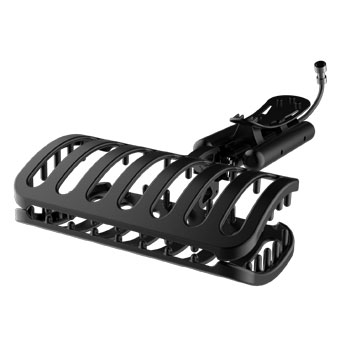

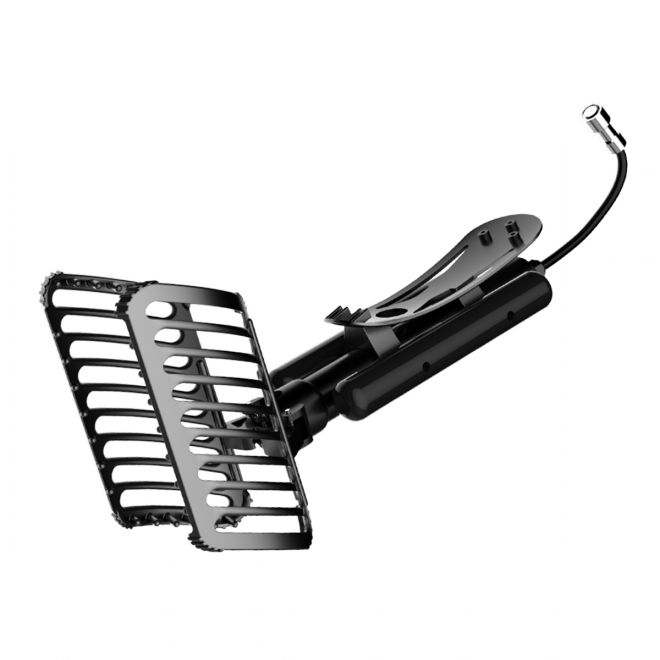

underwater dozer
Optional Underwater Dozer specially designed for aquaculture operations to push and move deceased/sick fish and other elements out of the fish farming spaces.
For use with FIFISH V6 EXPERT
net patch kit
Remotely repair net damages and secure open holes with quickness and efficiency.
For use with FIFISH V6 EXPERT

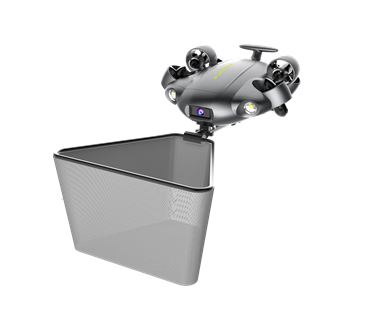

fishing net
Optional Fishing Net designed for environmental fishing and marine education in mind. Provides the ability to catch and hold onto fish across different types of waters without threat or damage.
For use with FIFISH V6 EXPERT
Sampling tools

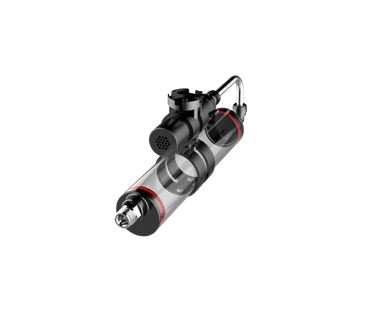

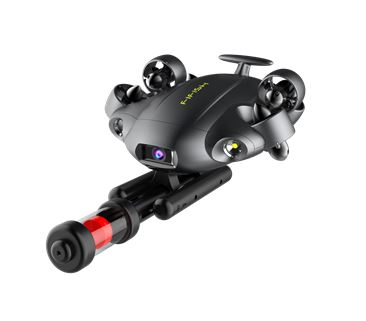

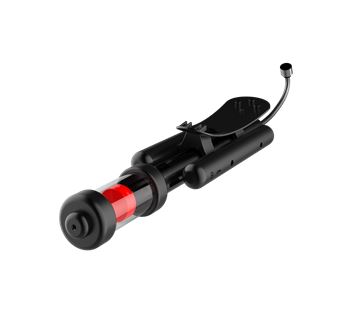

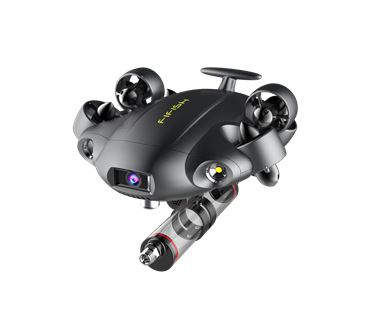

water sampler
Optional Water Sampler to collect various types of water in different underwater environments for your specific needs. 100ml & 500ml available.
For use with FIFISH V6 EXPERT

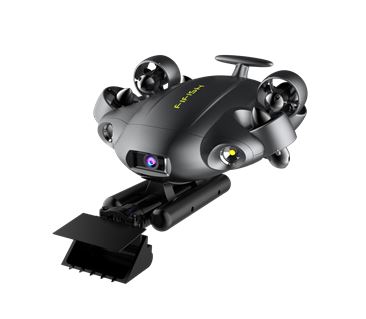

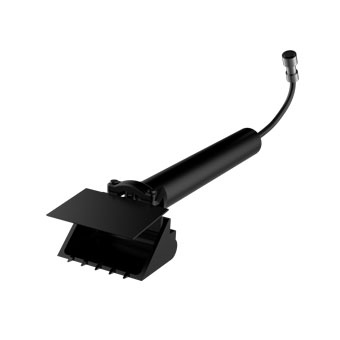

mud sampler
Optional Mud Sampler to retrieve and sample a wide range of underwater sediments on the seabed.
For use with FIFISH V6 EXPERT

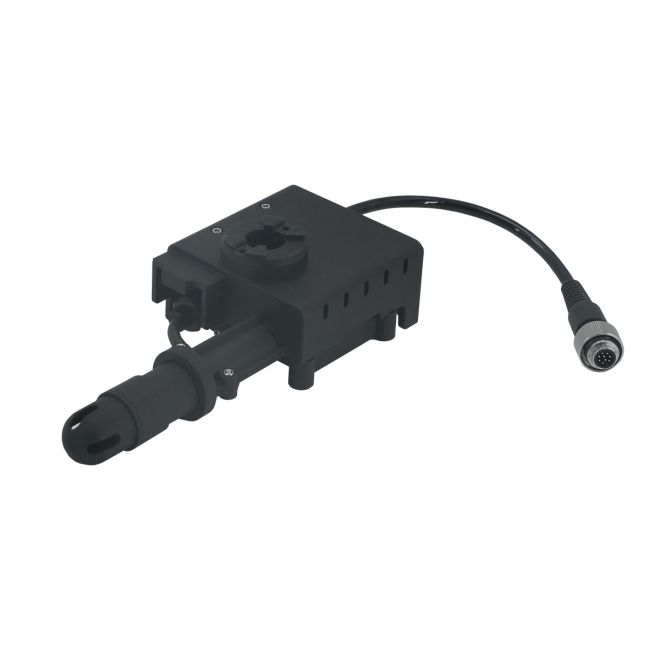

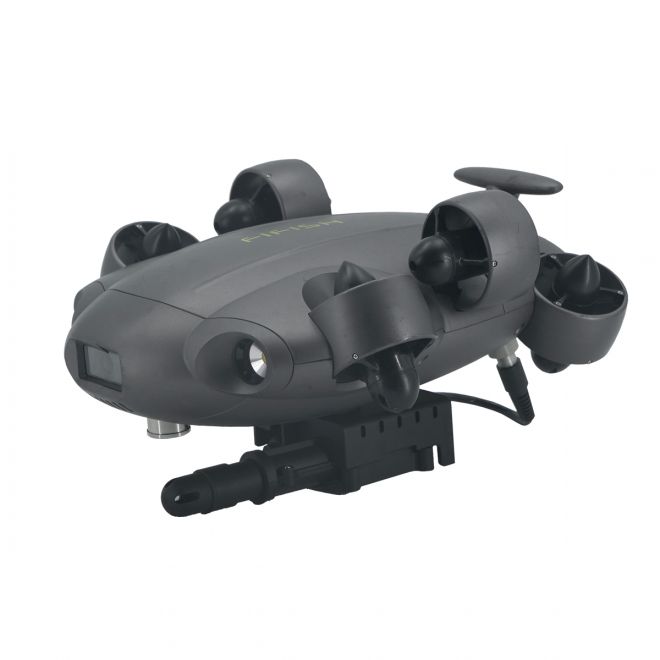

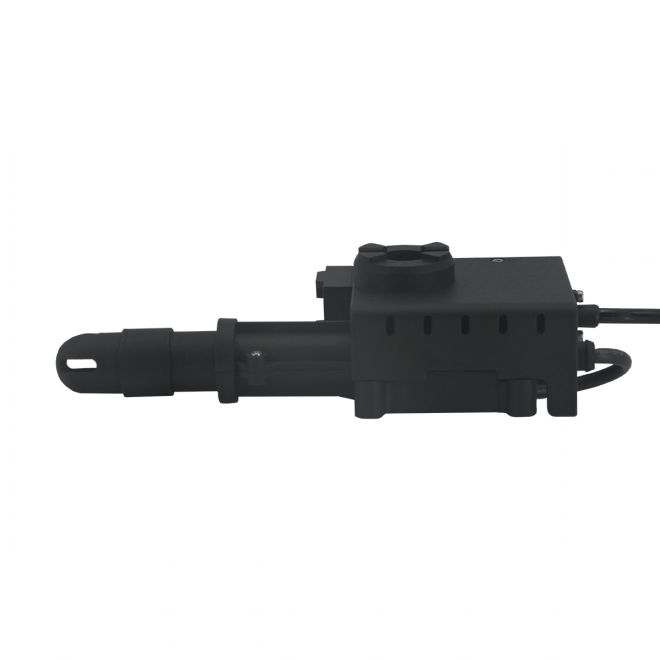

dissolved oxygen sensor
Optional Oxygen Sampler to monitor and record the level of dissolved oxygen in water contents. 20ml & 100ml available.
For use with FIFISH V6 EXPERT

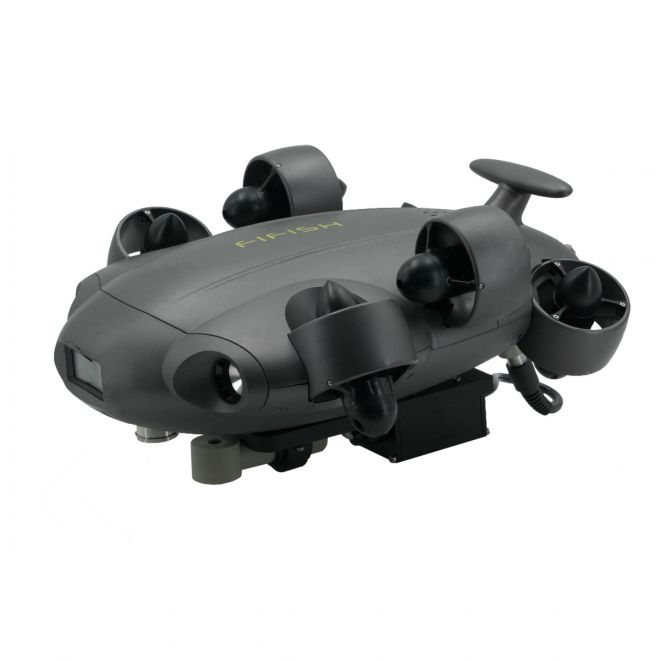

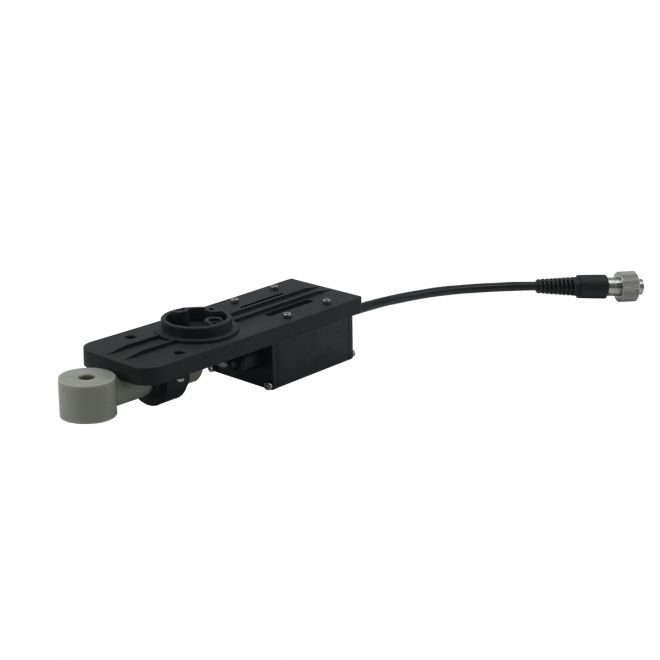

salinity sensor
Optional Salinity Sensor to measure the value of dissolved salt in the water.
For use with FIFISH V6 EXPERT

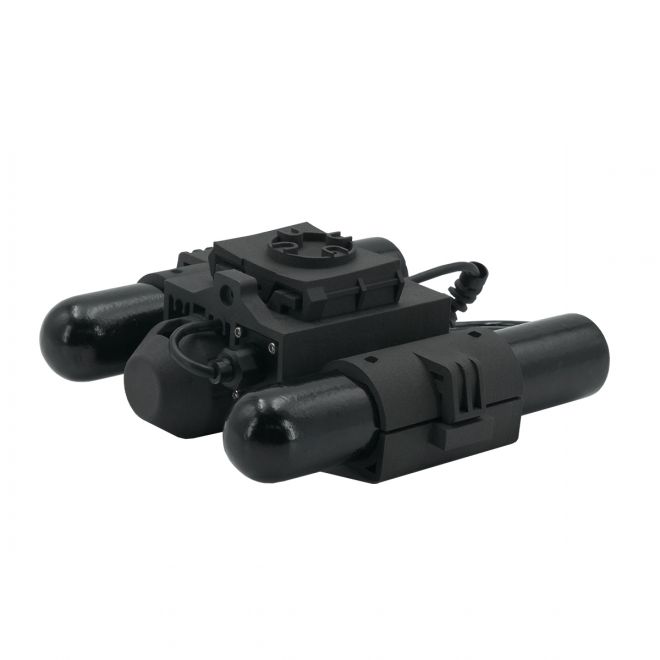

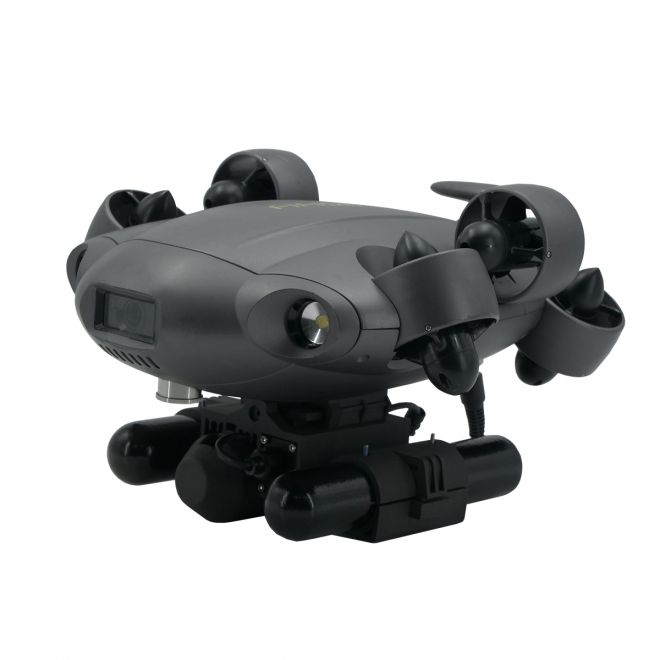

turbidity sensor
Optional Turbidity Sensor to measure the amount of light that is scattered by the suspended solids in the water.
For use with FIFISH V6 EXPERT

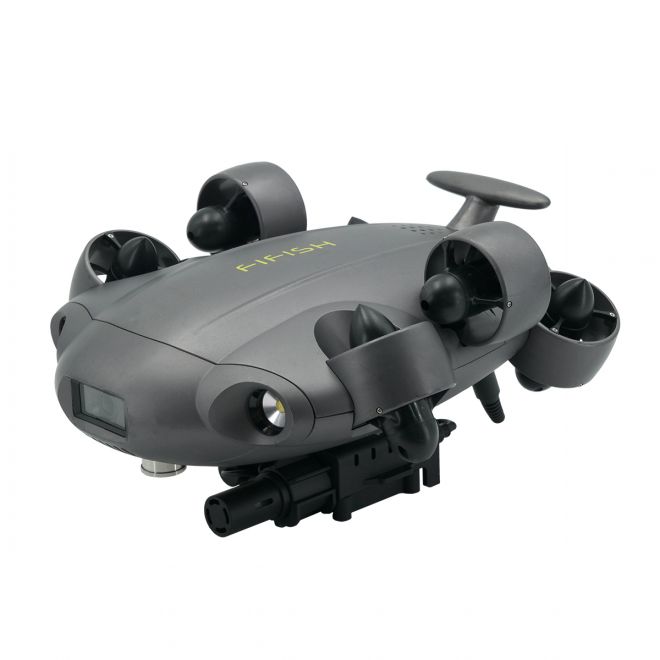

ph sensor
Optional pH Sensor to measure alkalinity and acidity levels in the water.
For use with FIFISH V6 EXPERT
power systems

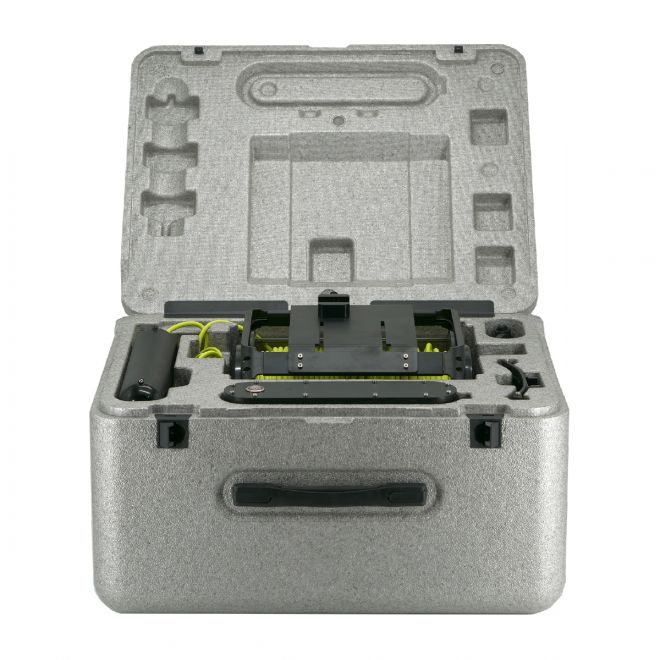

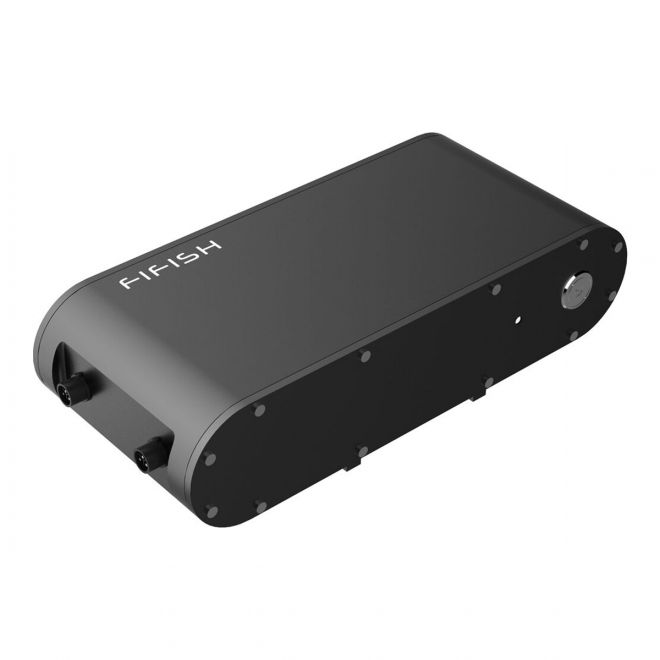

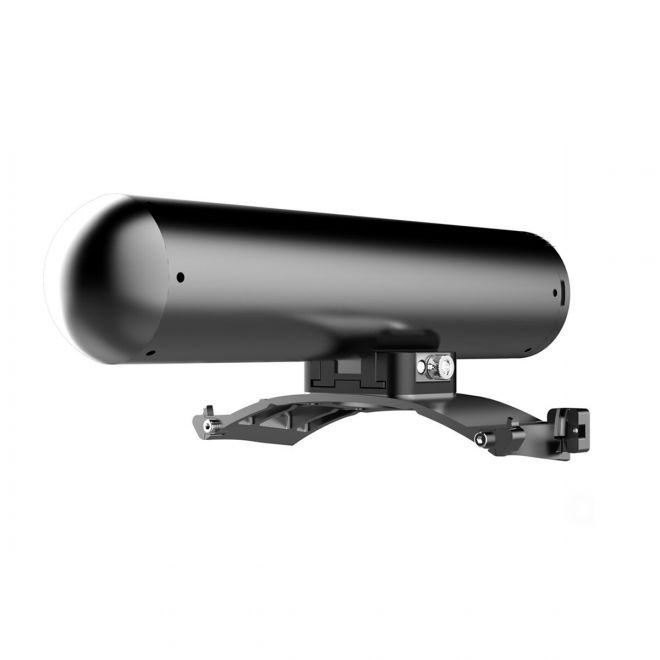

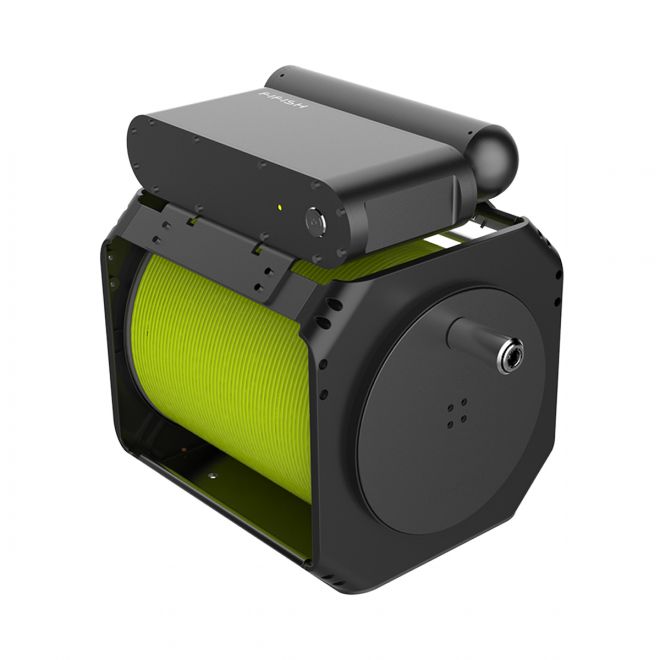

onshore power supply system
The Optional OPSS fast charges your ROV without needing to return onshore. Built with 130 Watts of output power, the Onshore Power Supply System provides fast charging to 70% capacity within 1 hour and is capable of operating at depths of up to 160 meters.
For use with FIFISH V6 EXPERT
other Accessories & spares

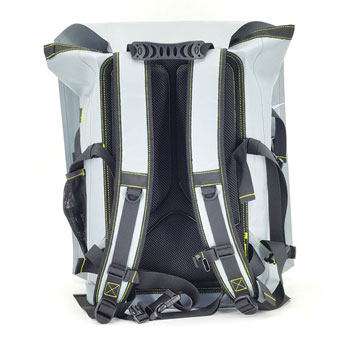

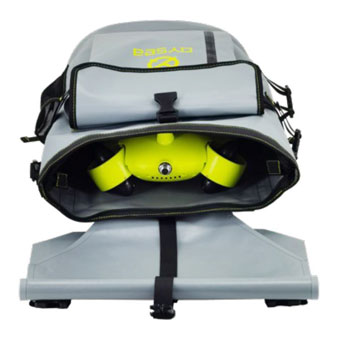

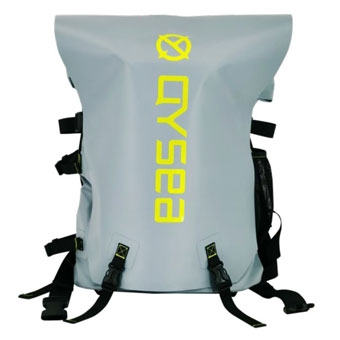

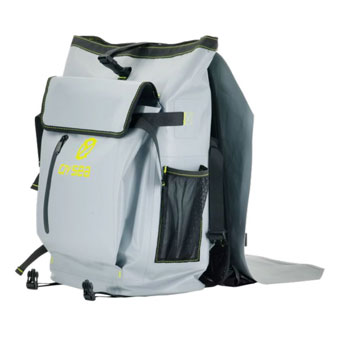

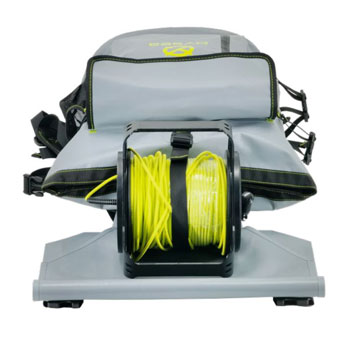

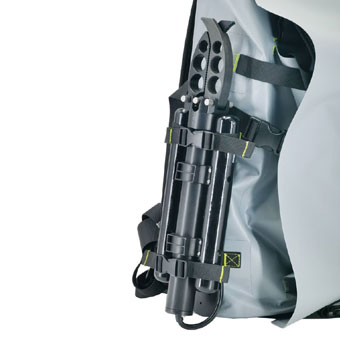

waterproof backpack bag
Specially designed, lightweight, and portable. QYSEA’s underwater drone backpack is uniquely customised for the FIFISH ROV. The outer layer of the backpack is made out of a TPU double-sided waterproof material that effectively protects the tether spool and remote controller from rainfall and storms. In addition to its 35L storage capacity, the backpack’s comfortable decompression-carrying system delivers a high load-bearing and lightweight carrying experience.
For use with FIFISH V6 EXPERT
Sunhood for controller
Optional Sunhood to hold iPads and tablets. It features an adjustable clamp to achieve a range of viewing angles for an unobstructed operating experience.
For use with FIFISH V6 EXPERT

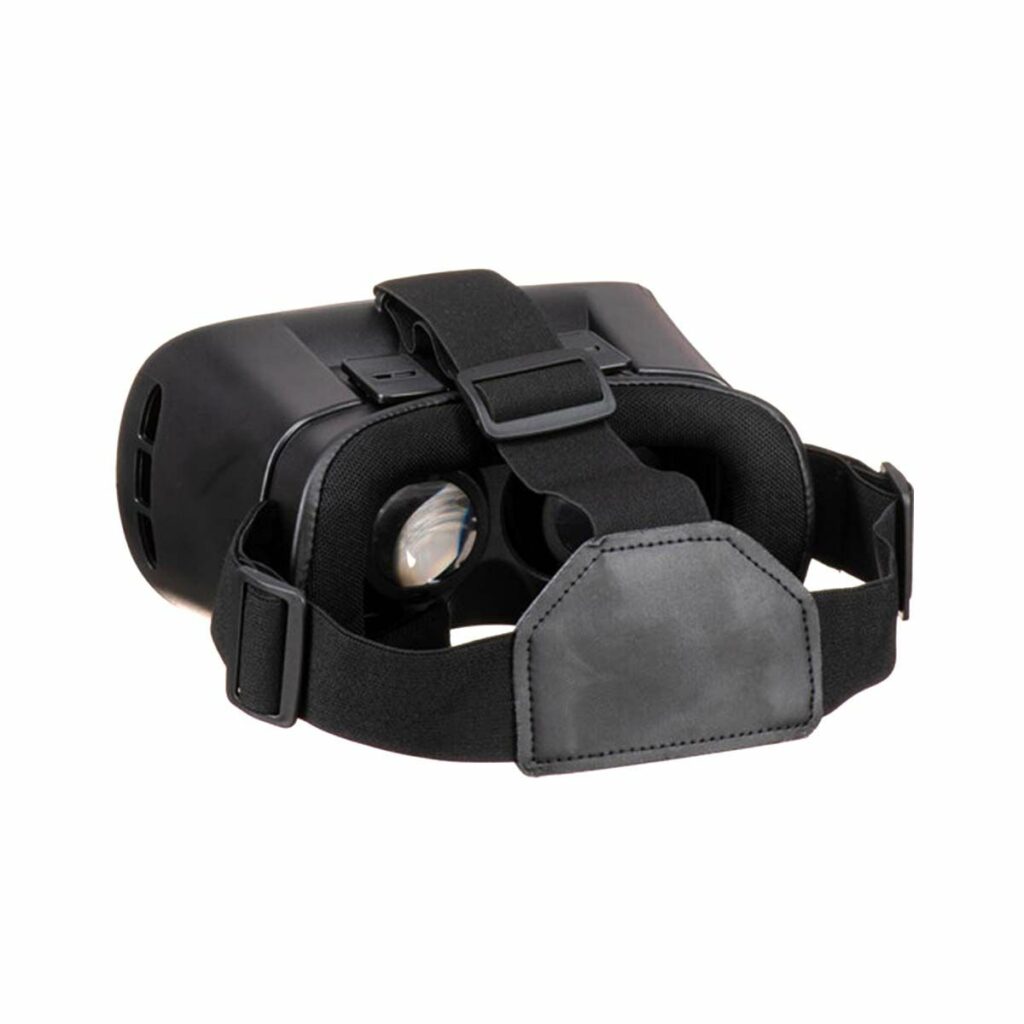

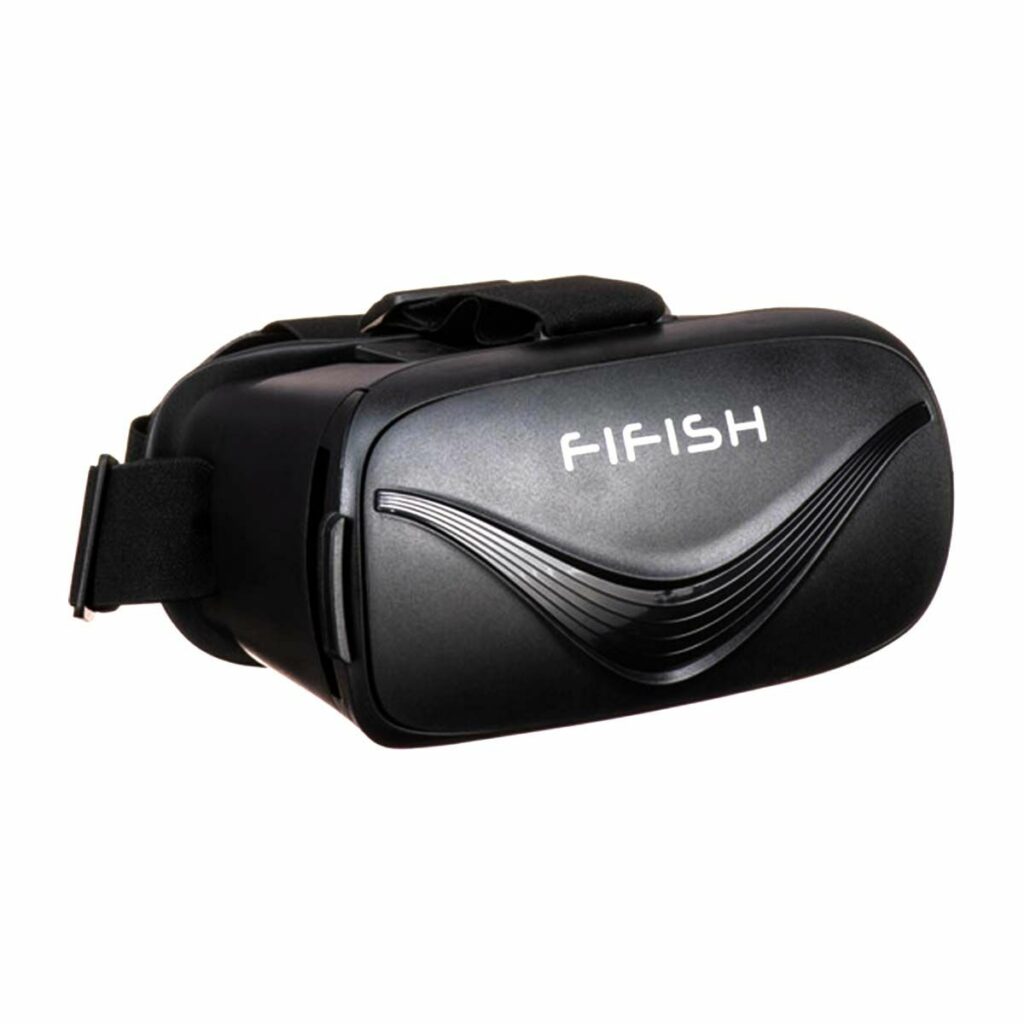

vr headset
Optional VR headset to be used with a compatible smartphone/tablet. Control your underwater drone’s direction and movements simply by turning your head.
For use with FIFISH V6 EXPERT

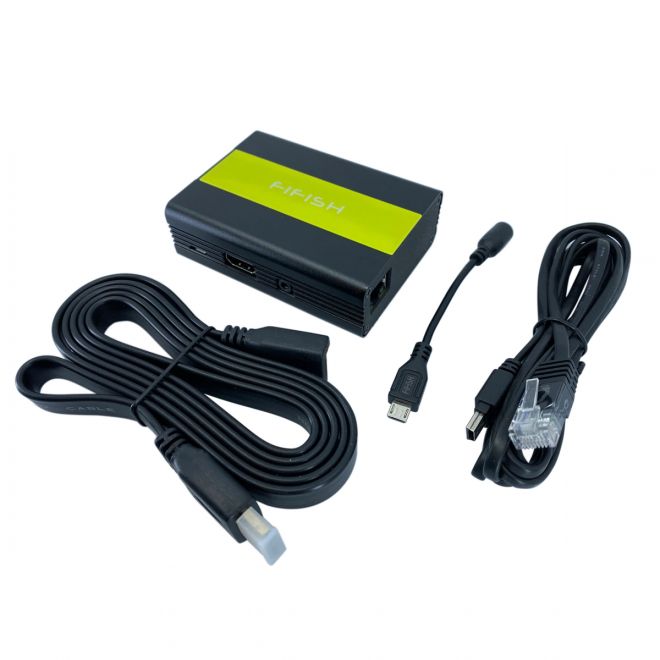

HDMI BOX 2.0
Optional HDMI Real-time projection screen display.
For use with FIFISH V6 EXPERT

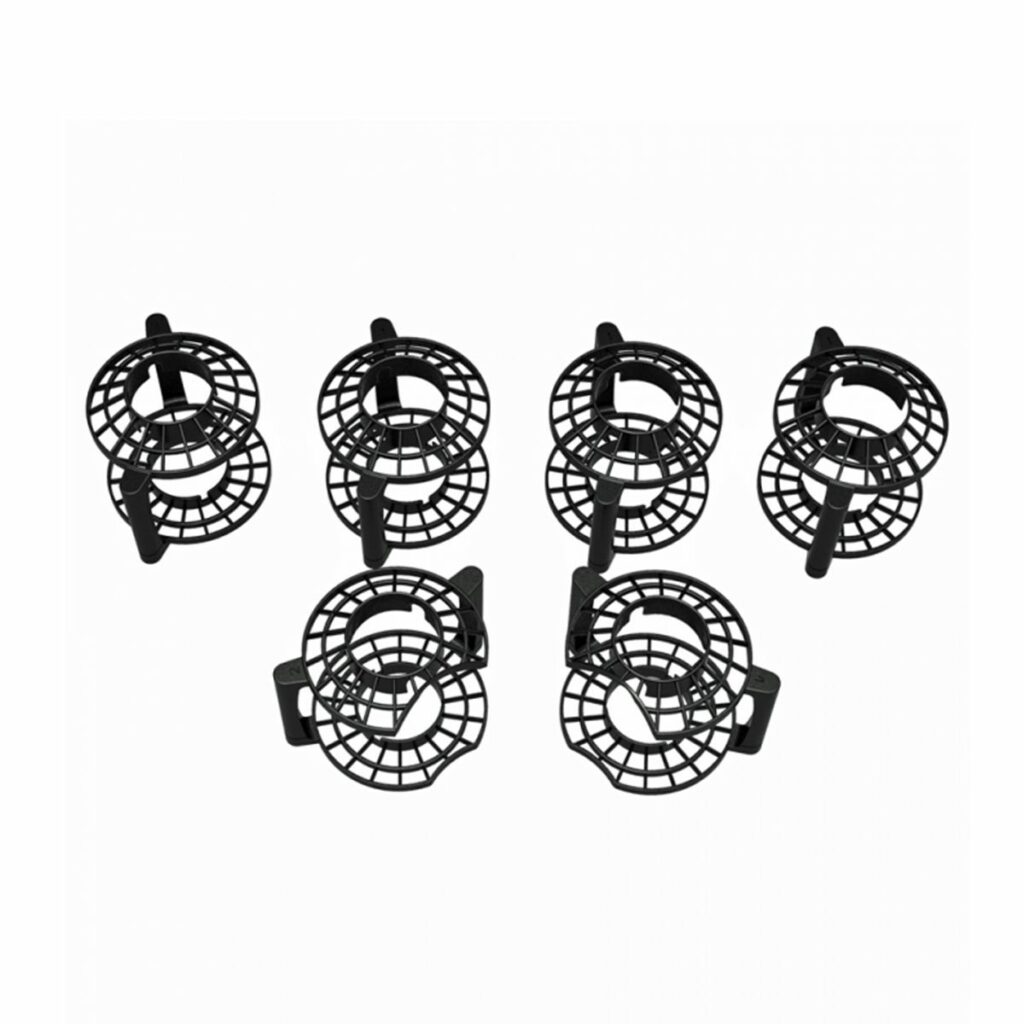

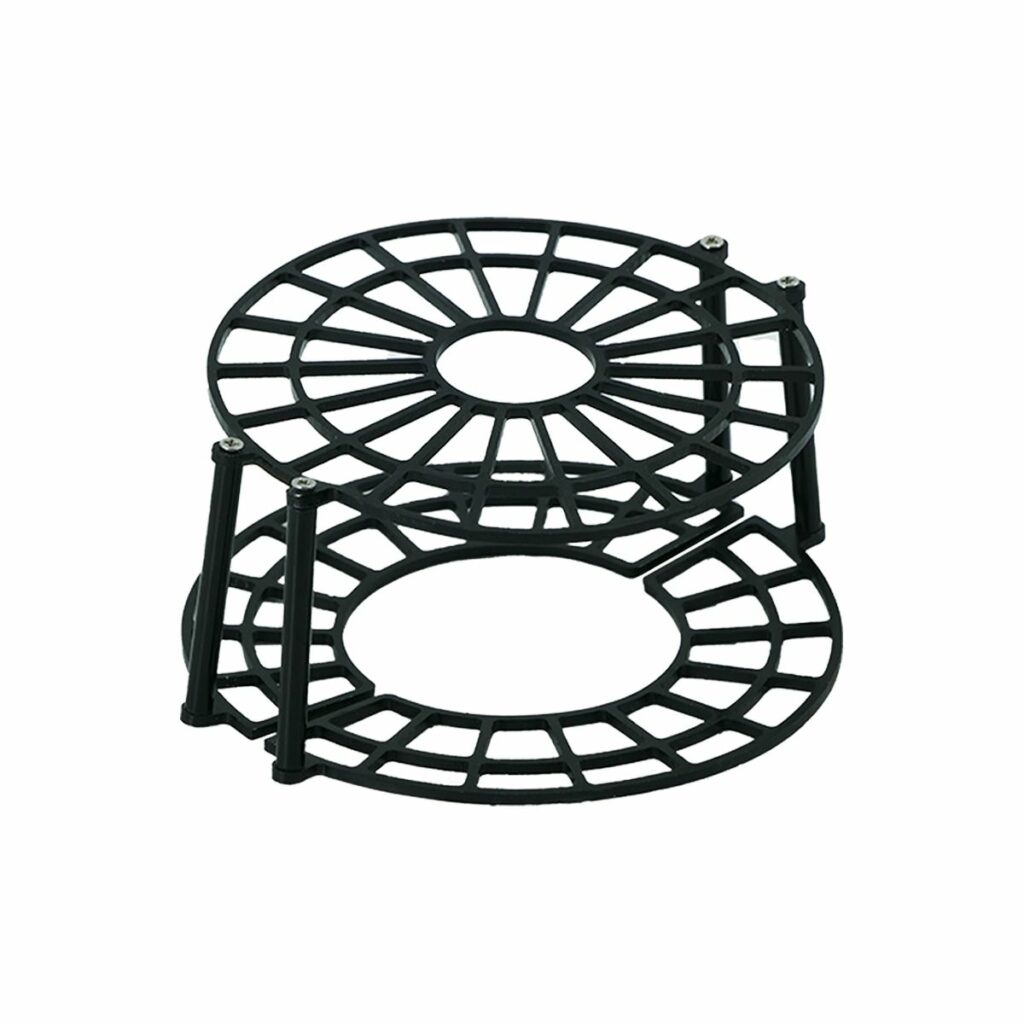

thruster protector
Optional Thruster protector kit to shield your propellers from underwater debris.
For use with FIFISH V6 EXPERT

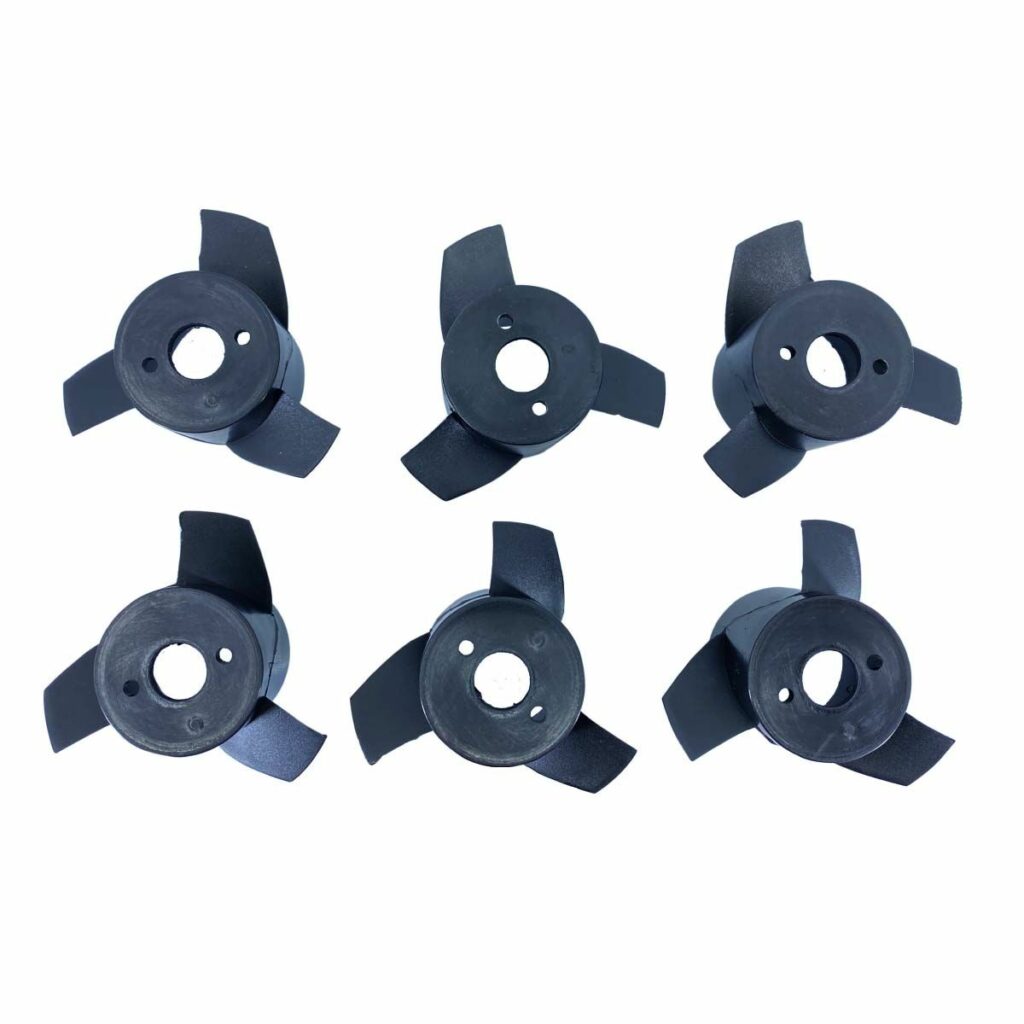

propellor kit
Kit of 6 additional plastic polyamide propellers.
For use with FIFISH V6 EXPERT

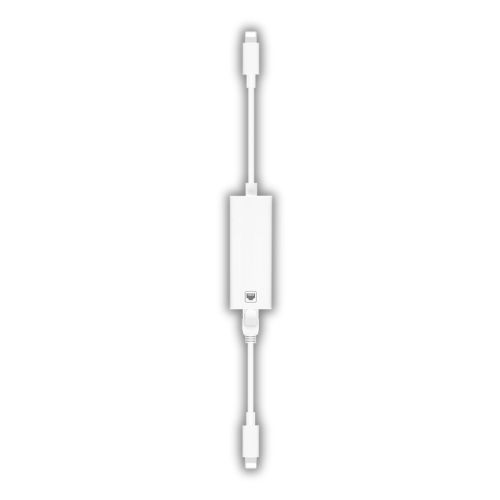

Connector cable
IOS Lightning connector to mini USB
For use with FIFISH V6 EXPERT

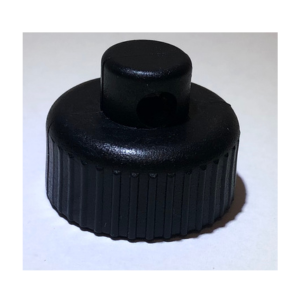

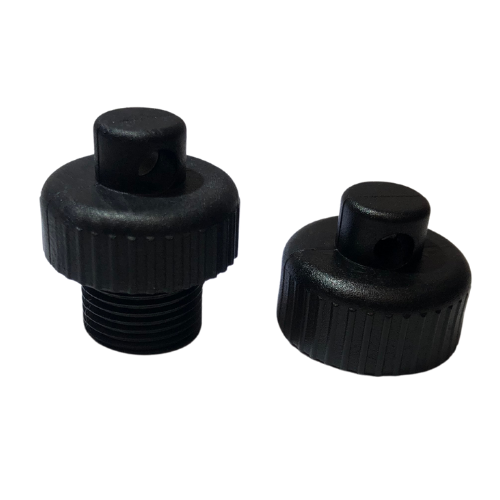

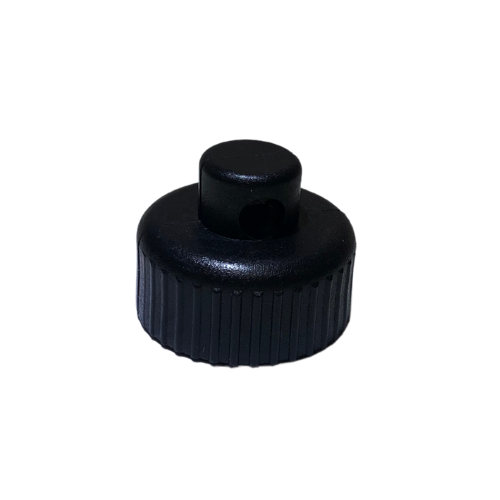

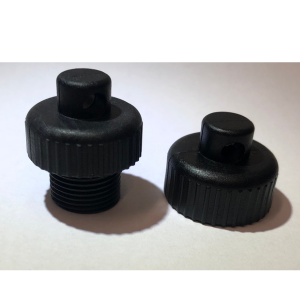

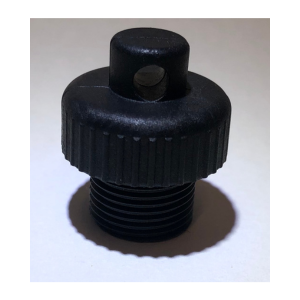

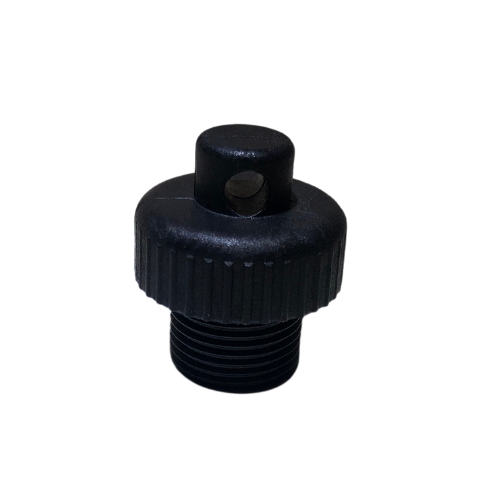

Blanking caps
Additional spare blanking caps.
For use with FIFISH V6 EXPERT
